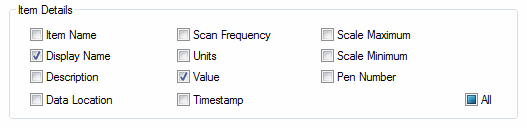

To select a specific detail check the appropriate tick box. It will then appear in the Item Details Area under the plot.
Tip: The user can reduce the amount of space allocated to each item in the Item Details Area (see the Item Width control on the Style tab of the User Preferences Dialog).
|
Control: |
Description: |
|
Item Name |
The full item name. |
|
Display Name |
The 'Display' name which can be a shortened alias rather than the full item string (see Representation on the Pens Tab). |
|
Description |
The Description of the item as read from the Data Source during resolution. |
|
Data Location |
The Data Source where the item was scanned from. |
|
Scan Frequency |
The frequency at which the item was scanned from the Data Source. |
|
Units |
The Engineering Units associated with the item. |
|
Value |
The value of the item at the current time slice. |
|
Timestamp |
The time when the corresponding value was read. |
|
Scale Minimum |
The Maximum Scale for the Pen. |
|
Scale Minimum |
The Minimum Scale for the Pen. |
|
Pen Number |
The number of the chosen Pen. |
Tip: To select or clear all of the check boxes use the 'All' check box.
Note: Since the Item Details are applied to the active plot a user can have different views for the each plot.
