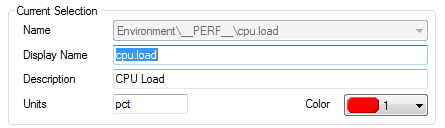

The Current Selection area of the Properties Items Tab displays details of the current Item.
|
Control: |
Purpose: |
|
Name |
The name of the selected OPC item. |
|
Display Name |
The name displayed in the dropdown on the main window. |
|
Description |
Description of the item retrieved from the data source. |
|
Units |
Engineering Units of the item retrieved from the data source. |
|
Color |
The color lozenge to display beside the OPC item in the dropdown on the main window.
Note: If Tabular History has been launched from an stPro Plot window or stOCX, the colors assigned to each item will be match the palette entry used within the 'parent' plot window. |
