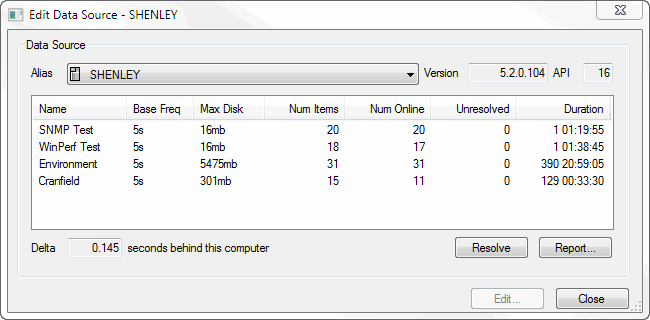

When the chosen Data Source is a Sapphire Collector, the Edit Data Source dialog will look as follows:
The central display region lists all the SDRs that are being managed by the Sapphire Collector along with summary information on the Items within each SDR.
Tip: Click on the buttons on the image to see the associated sub-dialogs.
|
Control: |
Purpose: |
|
Version |
The build version of the Sapphire Collector. |
|
API |
The SapphireTrend Network API version that the Sapphire Collector is running. |
|
Time Delta |
The difference in clock time between the users node and the node on which the Sapphire Collector is running. |
|
Resolve |
Click this button to re-resolve all the unresolved items in the highlighted SDR. |
|
Report |
Click this button to see a full report of all the SDRs and the underlying SDPs within the chosen Sapphire Collector. |
|
Edit |
The Edit SDR button allows the user to Add, Remove and Delete OPC items from the highlighted SDR within the chosen Sapphire Collector. |
